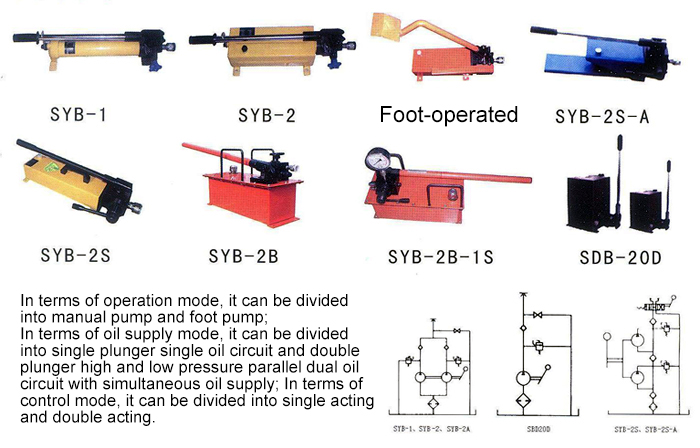

Manual oil pump series

Model	Rated pressure(Mpa)		Rated displacement (ml/time)		Maximum hand cranking force (V)	Fuel tank capacity (L)	Weight (kg)	External reference dimensions					Remark
Model	High pressure	Low pressure	High pressure	Low pressure	Maximum hand cranking force (V)	Fuel tank capacity (L)	Weight (kg)	L	L1	B	B1	H	Remark
SYB-1	63	1	2.3	12.5	≤500	0.7	7	64O	560	140	110	160	Dual pumps, single oil circuit
SYB-2	63	1	2.3	12.5	≤500	3	10	650	550	140	100	140	Dual pumps, single oil circuit
SYB-2A	63	1	2.3	12.5	≤500	4	11	700	600	140	100	140	Dual pumps, single oil circuit
SYB-2S	63	1	2.2	14.5	≤500	3	11	650	600	140	100	160	Dual pumps and dual oil circuits
SYB-2B-1S	80	2	2.3	45	≤500	10	31	850	500	220	220	320	Dual pumps and dual oil circuits
SYB-2B	80	2	2.3	45	≤500	10	31	850	500	220	220	320	Dual pumps, single oil circuit
SYB-100	100	2	2.2	14.5	≤500	3	11	650	600	140	100	160	Dual pumps, single oil circuit
JYB-1 Foot pump	63	1	2.3	12.5	≤500	1.5	10	700	600	140	100	140	Dual pumps, single oil circuit
SYB-2S-A	63	1	2.3	14.5	≤500	1.5	10	650	600	140	100	160	Dual pumps and dual oil circuits
SDB-20D	10		20		≤450	10	17	800	350	350	200	200	Single pump single oil circuit
